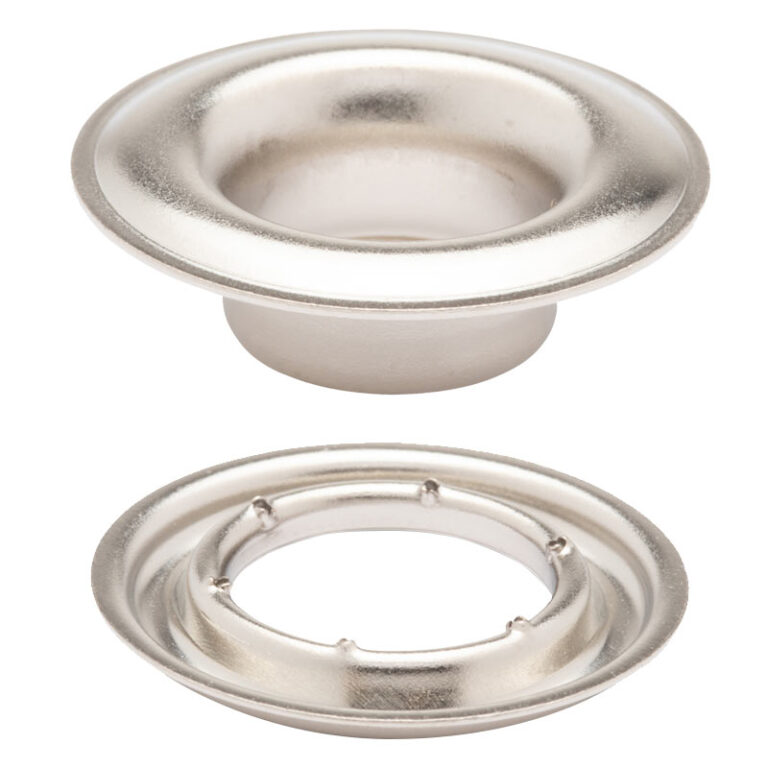

Self-Piercing Grommets and Washers
Division 20
Flags and Banners, Marine
Part No.
Grommet and Washer Set
20007SP0
Size
#0
Grommet ID
0.260
Grommet OD
0.551
Grommet LUF
0.161
Grommet Hole
13/50
Washer ID
0.315
Washer OD
0.575
Part No.
Grommet and Washer Set
20007SP1
Size
#1
Grommet ID
0.378
Grommet OD
0.630
Grommet LUF
0.201
Grommet Hole
19/59
Washer ID
0.378
Washer OD
0.654
Part No.
Grommet and Washer Set
20007SP2
Size
#2
Grommet ID
0.417
Grommet OD
0.748
Grommet LUF
0.196
Grommet Hole
4/11
Washer ID
0.417
Washer OD
0.772
Part No.
Grommet and Washer Set
20007SP3
Size
#3
Grommet ID
0.461
Grommet OD
0.969
Grommet LUF
0.181
Grommet Hole
6/13
Washer ID
0.516
Washer OD
0.969
Available Finishes:

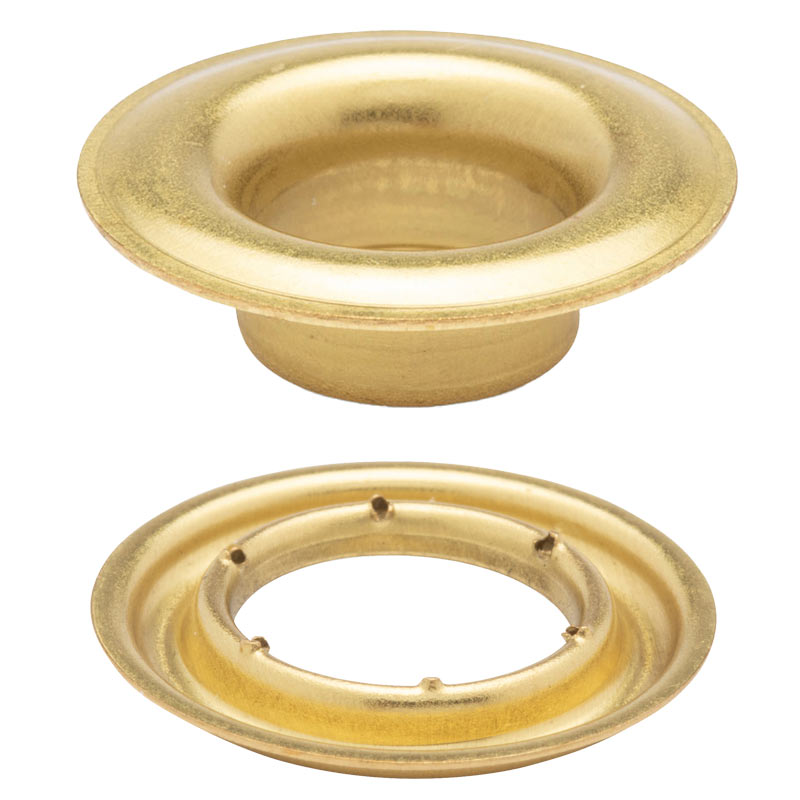

All DOT® Grommets and Washers–except for Stainless Steel–are available in the following standard finishes: Brass, Nickel and Black. Custom finishes and sprayed enamel finishes are also available upon request along with custom color matching. Minimum order quantities are required for certain colors.
Constructed of heavy-duty materials, DOT® Grommets and Washers are designed to provide reliable hole reinforcement. These high-quality grommets and washers conform to stringent commercial specifications. Morito Scovill Americas also offers a wide range of setting options to meet customers’ unique requirements.
- Sharp-edged barrels allow for application on material without having to pre-punch hole
- Made of premium brass
- Thicker raw material for lasting durability
