DOT® Sheet Metal Grommets and Washers
Division 20
Medical, Flags and Banners, Leather and Luggage, Tie-downs and Tarps
Part No.

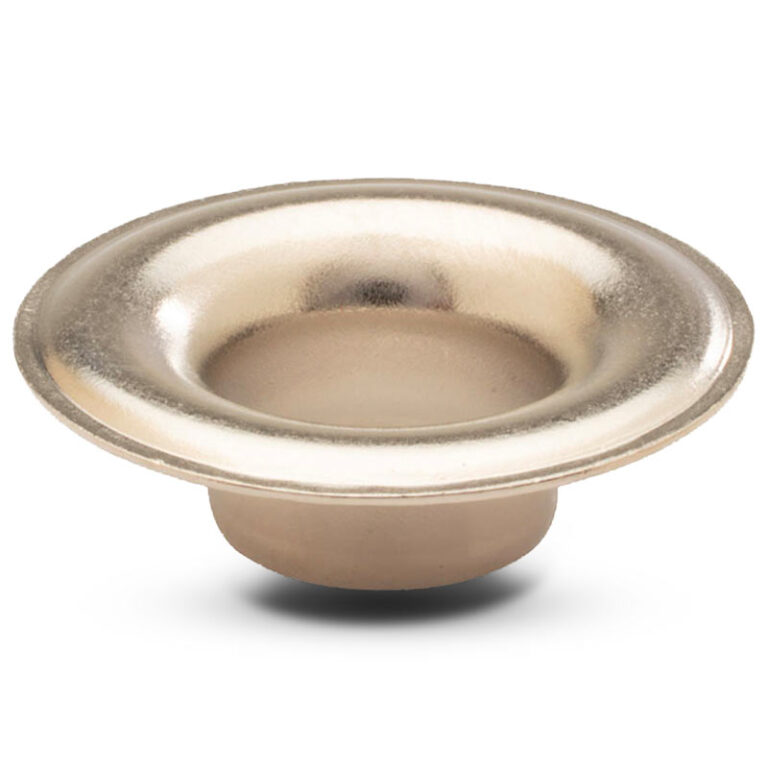

Sheet Metal Grommet
20-10900
Size
#00
OD
0.425
ID
0.176
LUF
0.135
Hole Size
3/16
Part No.
Sheet Metal Grommet
20-00900
Size
#0
OD
0.545
ID
0.240
LUF
0.175
Hole Size
1/4
Part No.
Sheet Metal Grommet
20-00901
Size
#1
OD
0.687
ID
0.286
LUF
0.185
Hole Size
9/32
Part No.
Sheet Metal Grommet
20-009J1
Size
#1J
OD
0.680
LUF
0.563
Hole Size
9/32
Part No.
Sheet Metal Grommet
20-00902
Size
#2
OD
0.815
ID
0.362
LUF
0.215
Hole Size
3/8
Part No.
Sheet Metal Grommet
20-009J2
Size
#2J
OD
0.840
LUF
0.260
Hole Size
3/8
Part No.
Sheet Metal Grommet
20-00903
Size
#3
OD
0.970
ID
0.433
LUF
0.235
Hole Size
7/16
Part No.

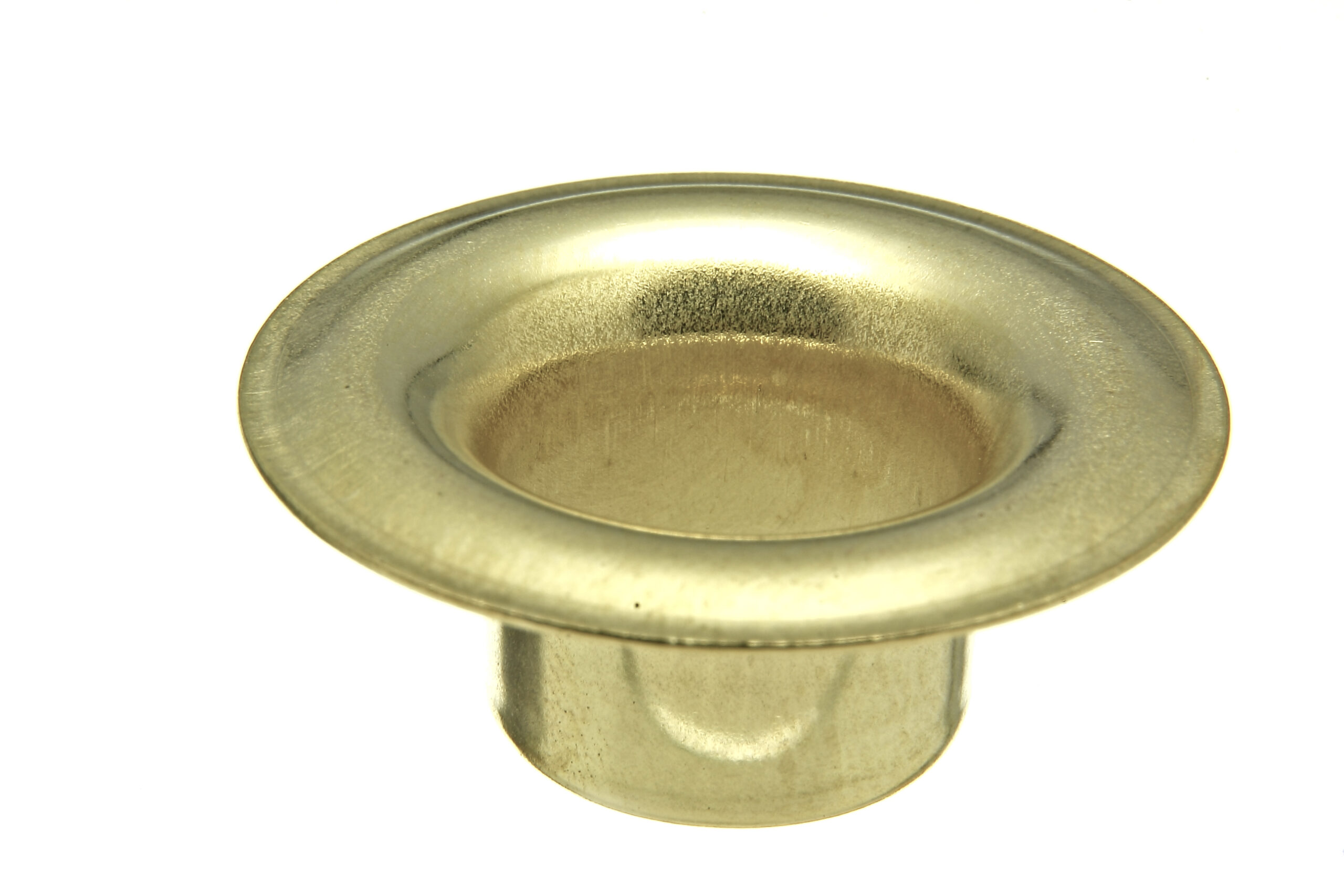

Sheet Metal Grommet
20-00904
Size
#4
OD
1.050
ID
0.486
LUF
0.374
Hole Size
1/2
Part No.
Sheet Metal Grommet
20-00905
Size
#5
OD
1.220
ID
0.594
LUF
0.330
Hole Size
5/8
Part No.
Sheet Metal Grommet
20-00906
Size
#6
OD
1.750
LUF
0.232
Hole Size
13/16
Part No.
Plain Washer
20-10800
Size
#00
OD
0.460
ID
0.218
Part No.
Plain Washer
20-00800
Size
#0
OD
0.546
ID
0.285
Part No.
Plain Washer
20-00801
Size
#1
OD
0.700
ID
0.359
Part No.
Plain Washer
20-008J1
Size
#1J
OD
0.700
ID
0.359
Part No.
Plain Washer
20-00802
Size
#2
OD
0.835
ID
0.453
Part No.
Plain Washer
20-008J2
Size
#2J
OD
0.835
ID
0.460
Part No.
Plain Washer
20-008JN2
Size
#2JN
OD
0.840
ID
0.460
Part No.
Plain Washer
20-00803
Size
#3
OD
0.955
ID
0.530
Part No.
Plain Washer
20-00804
Size
#4
OD
1.064
ID
0.585
Part No.
Plain Washer
20-00805
Size
#5
OD
1.205
ID
0.740
Available Finishes:
All DOT® Grommets and Washers–except for Stainless Steel–are available in the following standard finishes: Brass, Nickel and Black. Custom finishes and sprayed enamel finishes are also available upon request along with custom color matching. Minimum order quantities are required for certain colors.
Constructed of heavy-duty materials, DOT® Grommets and Washers are designed to provide reliable hole reinforcement. These high-quality grommets and washers conform to stringent commercial specifications. Morito Scovill Americas also offers a wide range of setting options to meet customers’ unique requirements.
- Made of durable, high-quality brass
- May be used interchangeably with Plain, Tooth or Neck Washers:

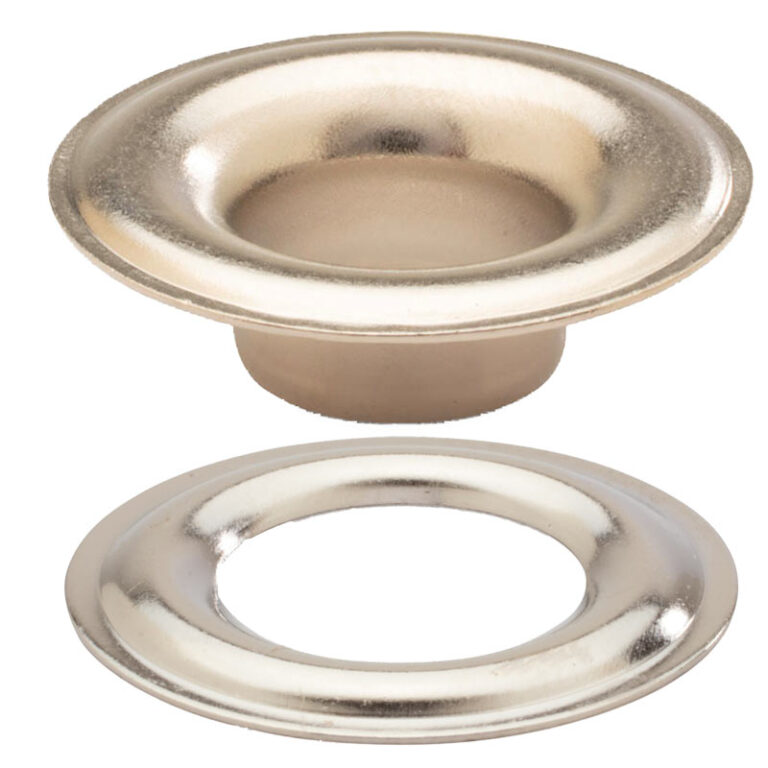

- Plain Washers are used as basic reinforcement to provide support for the grommet setting

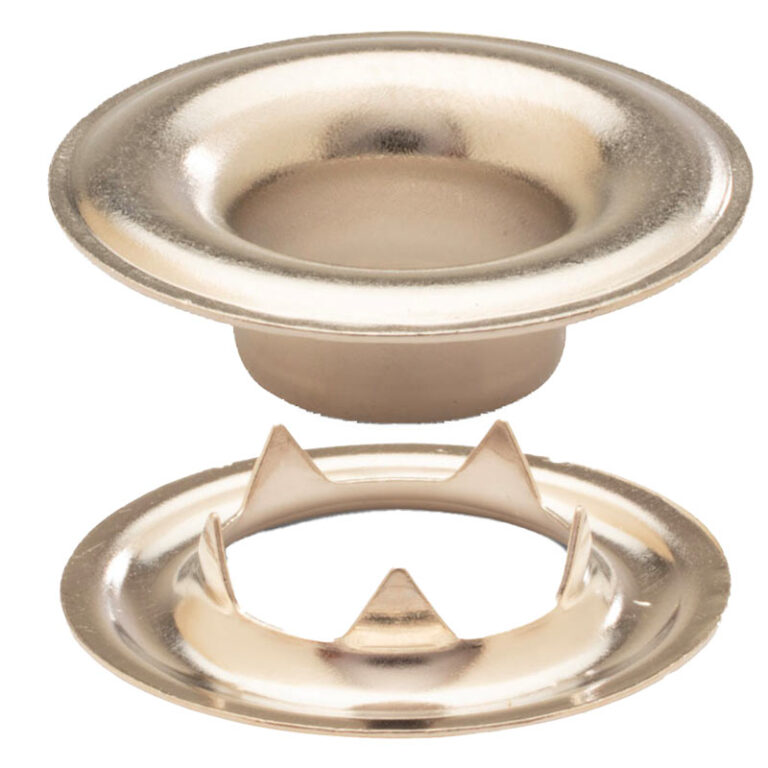

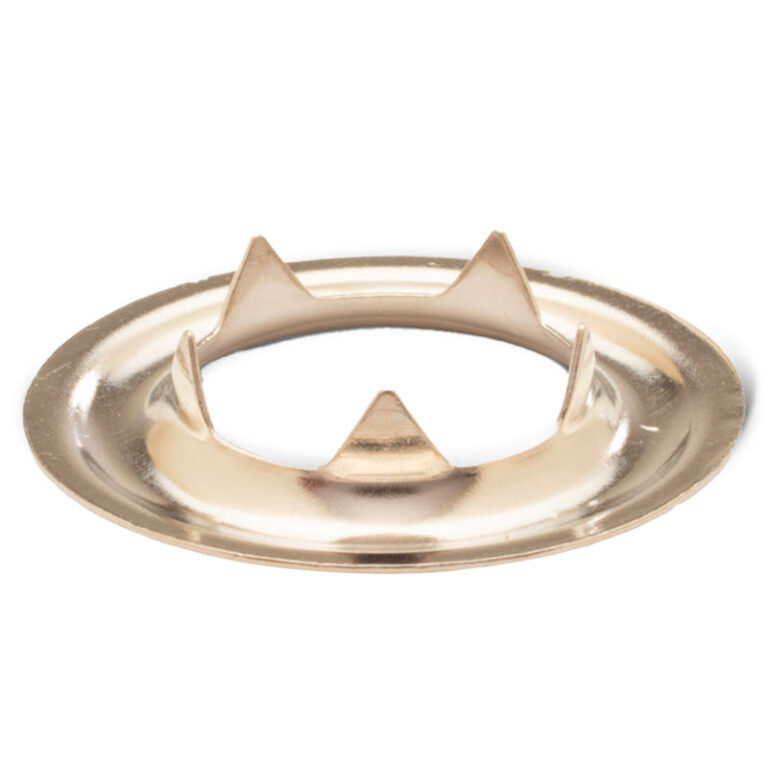

- Tooth Washers provide a firmer, tighter grip, particularly when used on woven material

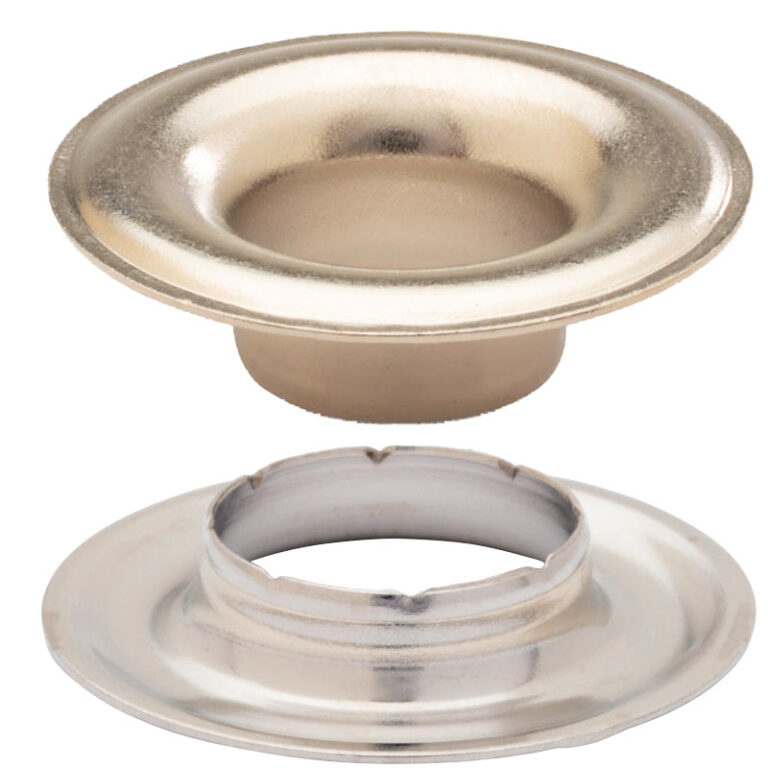

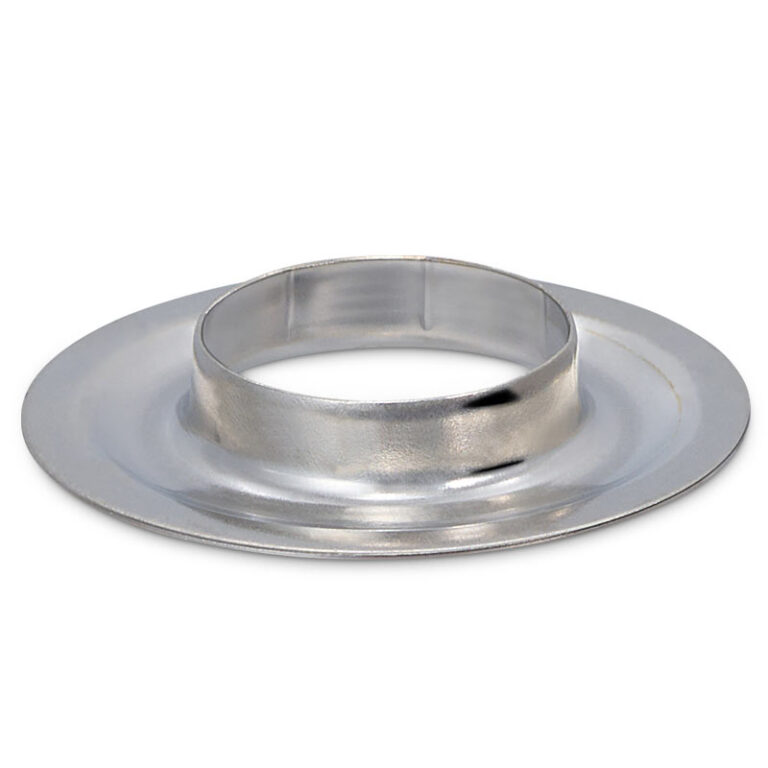

- Neck Washers reinforce the hole in a barrel-to-barrel setting and facilitate automatic feed setting
